Weir type diaphragm valve model T

Body linings

BASE Sferoidal grafite Ghisa a grafite sferoidale.
RUBBER(*) Ebonite (hard rubber), soft rubber (antiabrasive), butyle, neoprene, EPDM, Hypalon.
GLASS LINING(*) Borosilicate glass, high acid resistance.
HALAR Resistance to most chemichal fluids
POLIPROPILENE(*) High abrasive resistance for water treatment and fluids.
PVDF(*) Best resistance for acids and basic products.
ETFE(*) Etilene-tetrafluoroetilene (TefzelŪ), good resistence to chemical products and high temperature.
PFA(*) Fluoroetilene-perfluoroalchilviniletere (perfluoroalkoxy), high resistence to chemichal agents and to high temperatures.
(*)Thick linings

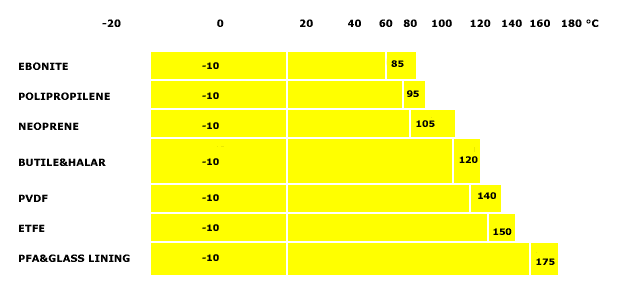

Temperature limits for lined bodies
